Mercedes Benz O 405 Photographs

The photographs and text below belong to Anthony Lui. You may set it as the wallpaper in your PC. However, you must seek Anthony Lui's permission and state the source before you place any of the pictures on the WWW or show it in public. Self-discipline is expected as I do not put my name in the pictures so as to retain its originality.

Trans Island Bus Services Hispano bodied non-airconditioned O 405s

Specifications (for both non-airconditioned and air-conditioned buses):

Chassis type: O 405
Chassis configuration: rear underfloor engine monocoque
Length (mm): 11650
Width (mm): 2500
Height (mm): 3050
1st axle weight (kg): 1300
2nd axle weight (kg): 4350
Unladen weight (kg): 8920
Gross vehicle weight (kg): 16000
Turning circle (mm): 21230
Body make: Hispano

Window type: fixed
Engine type: Mercedes Benz OM447hA.II/1
Engine position: rear horizontal
Engine capacity: 11.967 litres
No. of cylinders: 6
Bore (mm): 128
Stroke (mm): 155
Maximum speed: 74km/h
Passenger capacity: B41D+43
Total capacity: 84



From top to bottom:

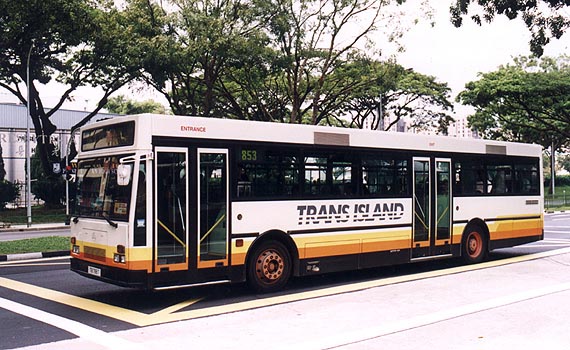

TIB787R, Somerset Road, 20 January 2000
TIB788T, Ang Mo Kio Avenue 6, 20 January 2000
